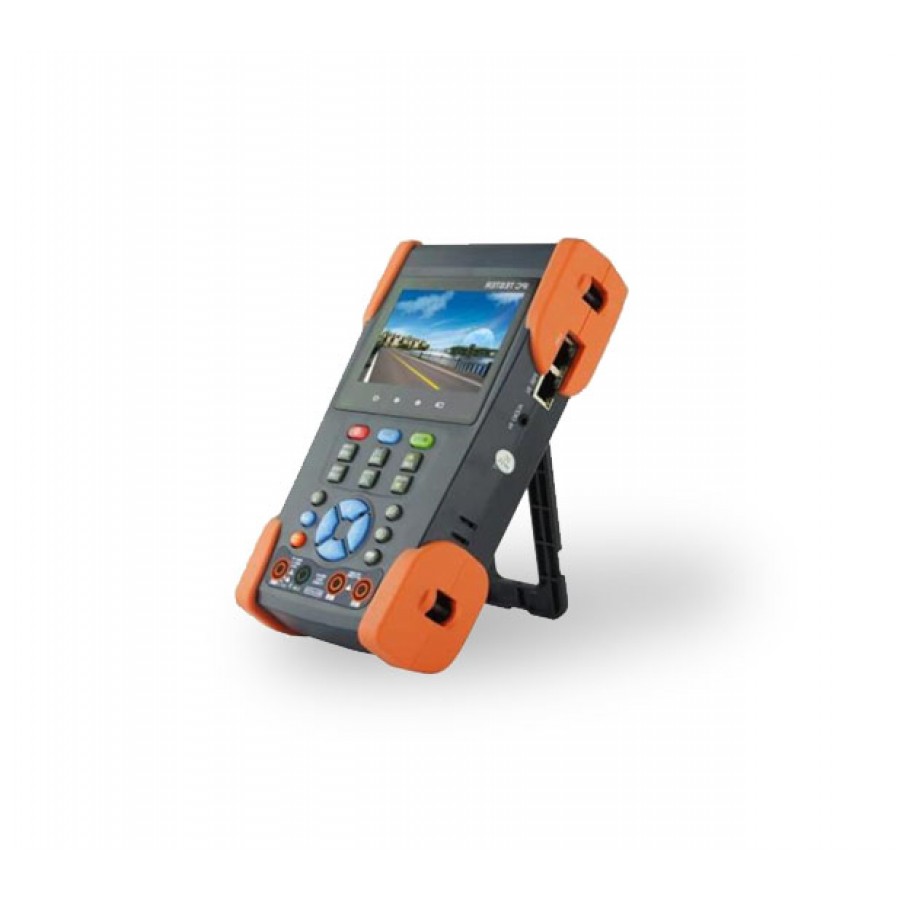

CCTV Tester 3.5” for IP Camera, Analog, HD-TVI and Multimeter
Video testing info & Functions:
- HD-TVI camera testing, image display, zoom, video record and playback, Coaxial PTZ control, etc.
- Display Onvif IP camera image, Onvif PTZ controller
- Support video management software and RTSP to view IP camera image
- Automatically adapts and displays the video formats of NTSC/PAL
- Enhanced color bar generator, by receiving the video color bar to test the video channel whether its transmitting normally
- 4x zoom, video image can be magnified to view the details, easy to use (both for analog and IP video)
- Video record and playback (both for analog and IP video)
- Snapshot and save the current image as JPG file in the SD card (both for analog and IP video)
- FTP Server, Static IP address, DHCP, simultaneously test different segments’ IP cameras
- Support RS232/RS485/RS422, rate 600 ～ 115200bps adjustable
- Audio input test, test the audio signal from pickup devices
- PTZ address scan, search the ID of PTZ camera.
- Multi-protocol: Supports more than thirty PTZ protocols. Such as PELCO-P, PELCO-D, SAMSUNG etc.
- PTZ protocol analysis, control protocol command displays to check RS485 transmission
- PTZ control. Pan/tilt the PTZ unit, zooms in/out the lens, adjusts the focus, aperture and sets and the preset position
- Ping testing, test IP camera or other network devices Ethernet port whether they’re working normally and if the IP address is correct
- IP address scan, quickly search the IP address for the connected IP camera and other network devices
- PoE voltage measurement, test the PoE switch’s voltage to IP cameras, wireless AP device and other PD devices
- Device Port flicker: easy to find the connected PoE switch port by sending special signals, the connected PoE port will flicker at special frequency.
- Link monitor, check if the desired IP address is available to avoid duplicate IP’s.
- Network cable and Telephone cable testing, display the sequence of connection and the No. of the LAN cable
- Network bandwidth testing
- Multimeter, voltage, current, resistance and capacitance can be tested, continuity testing, diode testing
- Built-in WiFi to receive network image and data, support Browser
Power info & Functions:
- Lithium Ion Polymer Battery. The device employs advanced power control and protection circuit. The device is high power-efficient, energy saving and environmental protection. It can last 8 hours for normal use after charging for 5 hours
- DC12V 1A power output for camera
Screen & Physical Info
- LCD screen brightness/contrast/color saturation adjustable
- LED Lamp, easy to operate at night
- Micro SD card (removable)
