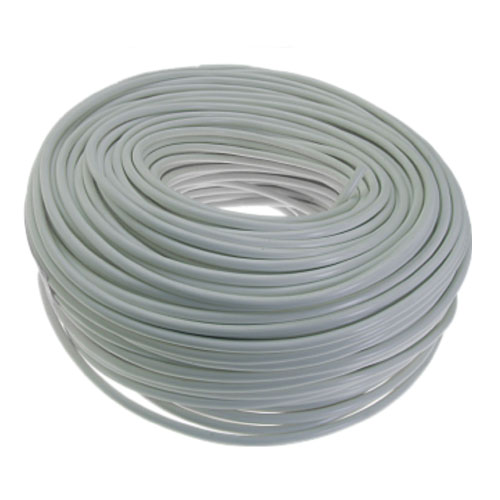

CABTYRE 0.5mm x3 Core Cable 100m

Product Description

CABTYRE 0.5mm x3 Core Cable 100m

Flexible Wiring
300/300V and 300/500V

Description

High conductivity bunched plain flexible copper conductors to SANS 1411 Part 1.
Insulated and color coded with general purpose flexible grade PVC to SANS 1411 Part 2.
Cores are twisted together and sheathed with a flexible grade PVC.

Installation Information
For supplying power to all types of electrical, domestic and industrial appliances and equipment such as:

• Power tools
• Kitchen appliances
• Multi plug extensions
• Electric lawnmowers
• Extension leads
• Small industrial machinery

Properties

• Specifications : SANS 1574
• Temperature Range : -10?C to 70?C
• Voltage Rating : Light Duty (LD) 300/300V and Normal Duty (ND) 300/500V
• Sheath Identification : White, black or grey

Core Identification : 2 Core – Blue and brown, 3 Core – Blue, brown and yellow/green, 4 Core – Blue, brown, black and yellow/green, 5 Core – Blue, black, brown, yellow/green and violet, 7 Core – Blue, brown, black, yellow/green, violet, pink and orange

Packaging

100mt shrink-wrapped coils

500mt and 1000mt lengths available on request

Additional Information

• Weight – 4.3kg
• Material – PVC
• Color – available in Black or White
