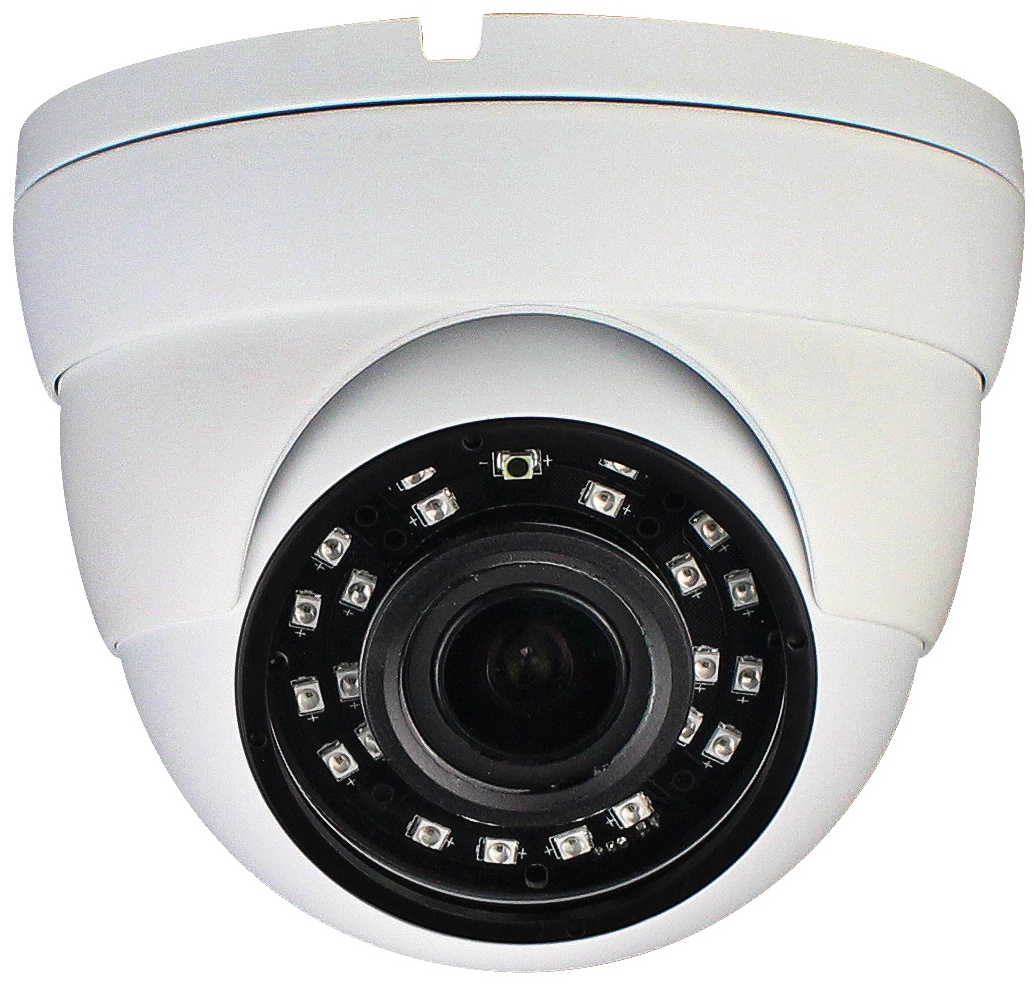

5MP IP RIVOLT IR DOME Camera
1/2.8″ Sony335 CMOS Sensor
Board Lens 2.8mm
30m IR
POE & 12V
R 1,103.00 incl. VAT
Product Description
5MP IP RIVOLT IR DOME Camera
Technical Specification
| Model No. | RT5MP2028DP | |
| Stream | Main stream: 5.0MP (2592*1944) | |
| Sub stream: D1 (704*576), CIF(352*288) | ||
| Frames Rates | PAL: 25fps (2560*1440) /15fps (2592*1944) | |
| NTSC: 30fps (2560*1440)/ 15fps (2592*1944) | ||
| Image Sensor | 1/2.8″ Sony335 CMOS Sensor | |
| DSP | Dual core 32-bit DSP | |
| (Hi3516C) | ||
| Min. Illumination | Color 0.01Lux@F1.2 | |
| B/W 0.001 Lux@F1.2 | ||
| Adjust Parameters | DWDR, BLC, DNR, AE, AGC, D&N, Mirror, Flip, etc | |
| Video | Compression | H.265 main profile |
| Stream | Support dual stream, AVI format; | |
| Bit Rate | Support 0.1M ~10Mpbs bit rate adjustable | |
| Frame Rates | Support 1~30fps adjust | |
| Audio | Input and output | Optional 1ch input (microphone), 1ch output (Speakerµphone) |
| Compression | G.711 compression, support two-way audio intercom, support audio and video synchronized output | |
| Alarm | Types | Motion Detection, Video Blind, Video Loss |
| Network | WEB Browser | Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.) |
| WDR | Digital WDR | |
| Anti-fog | Support | |
| Electronic shutter | Auto (1/25s-1/10000s Adjustable) | |
| Riduzione rumore | 2D/3D Digital Noise Reduction | |
| Codec video | H.264 H.265 | |
| Video Bitrate Control | Support VBR/CBR | |
| Maschera Privacy | 4 zone configurabili | |
| Smart Phone | Mobile remote Monitoring (iPhone, Android, Windows Mobile, BlackBerry, Symbian) | |
| CMS Software | Uniform CMS Software (multiple devices management system) | |
| Cloud P2P | www.p2pipc.net, MYEYE platform and other program, Offer SDK | |
| Network | 1*RJ45, 10/100M, Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP | |
| ONVIF | Support | |
| POE | Support | |
| General | Language | 20 languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish |
| IR Cut Filter | Set of double light switch IR-CUT filter | |
| Lens Mount | Fixed lens 2.8 mm | |
| Infrared Luminary | 24pcs SMD LED | |
| Infrared Wavelength | 850 nm | |
| Illuminate Distance | 30m | |
| I/O Connector | 1*DC Connector, 1* RJ45 (10/100M Network) | |
| Supplied Voltage | DC12V/PoE (802.3af/820.3at) | |
| Power Consumption | IR On: 600mA max., IR Off: Less than 200mA | |
| Working Environment | -10°C~+60°C, 10%~90% ( Built in Heater being optional added for environment lower than -20°) | |
| Weight | 0.65kg | |
