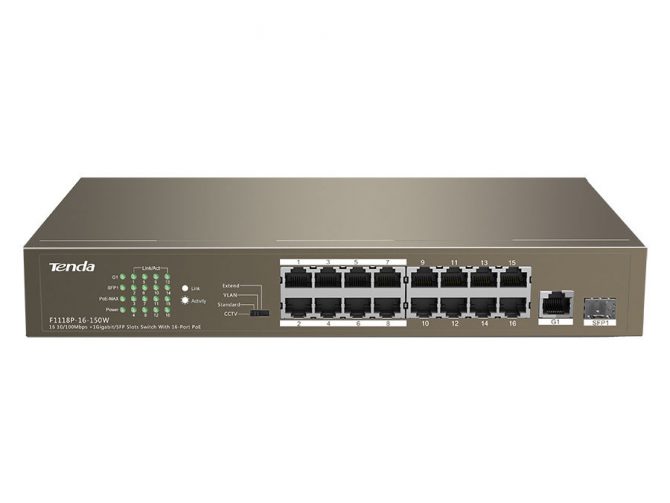

16 Port Ethernet Switch with 16 Port PoE SW-TEF1118P-16-150W
16 Port Ethernet Switch with 16 Port PoE SW-TEF1118P-16-150W
16 x 10/100Base-TX ports
1 x 10/100/1000 Base-T ports
1 x 1000 Base-X SFP ports Combo
PoE Consumption: In full configuration：<150W
R 2,663.00 incl. VAT
Product Description
16 Port Ethernet Switch with 16 Port PoE SW-TEF1118P-16-150W
SW-TEF1118P-16-150W is a PoE switch that offers 16x 10/100 Mbps Base-TX RJ45 ports, 1x 10/100/1000 Mbps Base-T RJ45 ports, and 1x 1000 Mbps Base-X SFP port. Ports 1-16 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W).
The switch offers a maximum PoE power output of 135 W and can supply power to, and exchange data with, AP’s, IP cameras, and IP phones supporting the 802.3af/at standard. It also provides simple management modes such as CCTV (QOS on ports 1-8), VLAN (Port Isolation) and Extender mode (250m PoE at 10mbps). The switch also provides 6KV lighting protection.
Indicator
16 x Link/Act per device
1x G1 Link/Act per device
1x SFP Link/Act per device
1x PoE-MAX per device
1x Power per device
Interface
16x 10/100Base-TX ports (Data/Power)
1x 10/100/1000Base-T port (Data)
1x 1000Base-X SFP port
Lightning Protection: 6KV
Store & Forward: Yes
Exchange capacity: 7.2 Gbit/s
Packet Forwarding Rate: 5.36Mpps
MAC Address Table: 4K
PoE supply management: Port 1 to Port 16 support IEEE802.3at/af POE standard
PN pass-through: 1 2 4 5 +，3 6 7 8 –
Input Power AC：100-240V～ 50/60Hz
Power Consumption: In full configuration：<150W
PoE Max Power Supply：135W
Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Dimensions: 294 x 178 x 44mm ( W x D x H )
