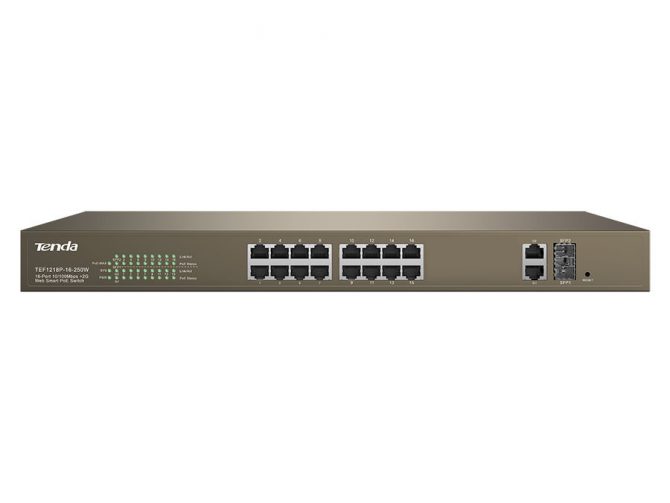

16 Port Smart PoE Switch, 16 PoE, 2 Uplink 230W
16 Port Smart PoE Switch
16 PoE
2 Uplink
230W
R 3,306.00 incl. VAT
Product Description
16 Port Smart PoE Switch, 16 PoE, 2 Uplink 230W
Specification
- Standards & Protocol: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.1W, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at
- LED: Link/Act, PoE Status,System, Power, PoE MaxInterface:
- Fixed Ports: 16 x 10/100Base-TX ports
- 2 x 10/100/1000 Base-T ports
- 2 x 1000 Base-X SFP ports Combo
- Lightning protection: ≥6KVPower:
- Power supply module: Providing 16 ports under IEEE 802.3af (15.4W) or 8 ports under IEEE 802.3at (30W)
- PoE through pin:1 2 4 5 +，3 6 7 8 –
- Voltage input range: AC：100－240V～ 50/60Hz
- Power Consumption: <250W
- PoE consumption up to 230W
- Dimensions: 440mm x 284mm x 44mm (L×W×H）
- MTBF: 100,000 hours
- Performance: Store and forward, Exchange capacity: 7.2 Gbit/s, MAC address entries: 4K MAC
- VLANSupport: VLAN (4K) based on ports, Supports 802.1QVLAN
- Mirroring: Supports local mirror imageLink Aggregation:
- LACP, manual link aggregation
- Up to 6 link aggregation groups and up to 8 GE ports per group
- QoS: Supports message transmission for ports and limitation of speed, Supports SP & WRR
- Weight: ≤5kg
- Operating temperature: 0 ℃～40 ℃
- Storage temperature: -40 ℃～70 ℃
- Operating Humidity: 10%～95%(non-condensing)
- Storage Humidity: 10%～95%(non-condensing)
- PoE supply management: Se-tup of PoE, Power adjustable by priority, over heating protection for PoE module
- Layer 2 ring network protocol: Supports STP/RSTP and looped Network for devices
