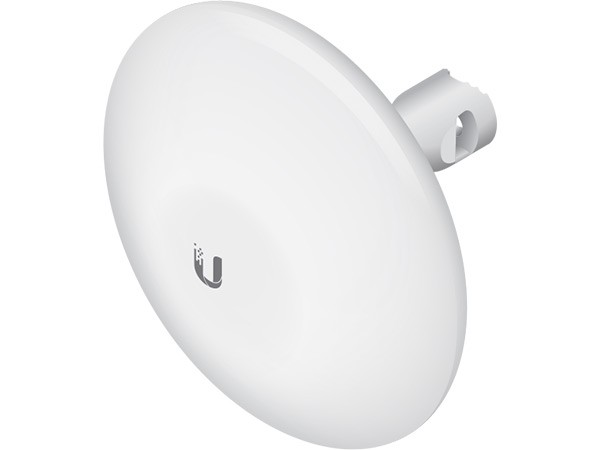

5GHz Ubiquiti AirMax MIMO NanoBeam 16dBi
Gain: 16 dBi
Networking Interface: (1) 10/100 Ethernet Port
Power Supply: 24V, 0.5A PoE
R 1,311.00 incl. VAT
Product Description
5GHz Ubiquiti AirMax MIMO NanoBeam 16dBi
Specification
- Processor Specs: Atheros MIPS 74KC, 560 MHz
- Memory: 64 MB DDR2, 8 MB Flash
- Networking Interface: (1) 10/100 Ethernet Port
- Power Supply: 24V, 0.5A PoE
- Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
- Max. Power Consumption: 6 W
- Gain: 16 dBi
- Wind Loading: 21.4 N @ 200 km/h
- Wind Survivability: 200 km/h

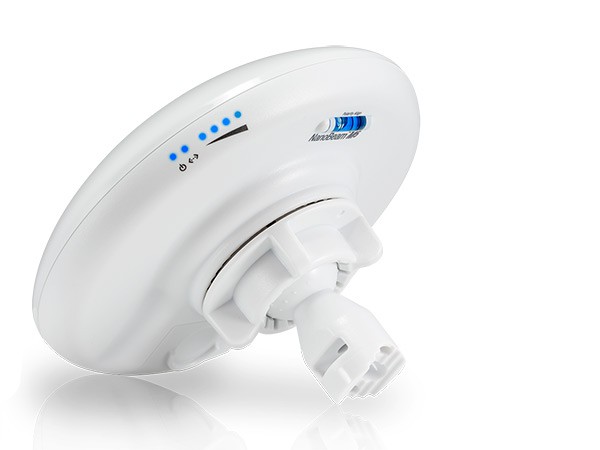

- LEDs: (1) Power, (1) LAN, (4) WLAN
- Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
- Channel Sizes: 5/8/10/20/30/40 MHz
- Polarization: Dual Linear
- Enclosure: Outdoor UV Stabilized Plastic
- Mounting: Pole-Mount (Kit Included), Wall-Mount
- ESD/EMP Protection: Air: ±24 kV, Contact:± 24 kV
- Operating Temperature: -40 to 70° C
- Operating Humidity: 5 to 95% Non-Condensing
- Vibration Test: IEC 68-2-6
- Temperature Shock Test: IEC 68-2-14
- Dimensions: 140 x 140 x 54 mm
- Weight: 0.320 kg
